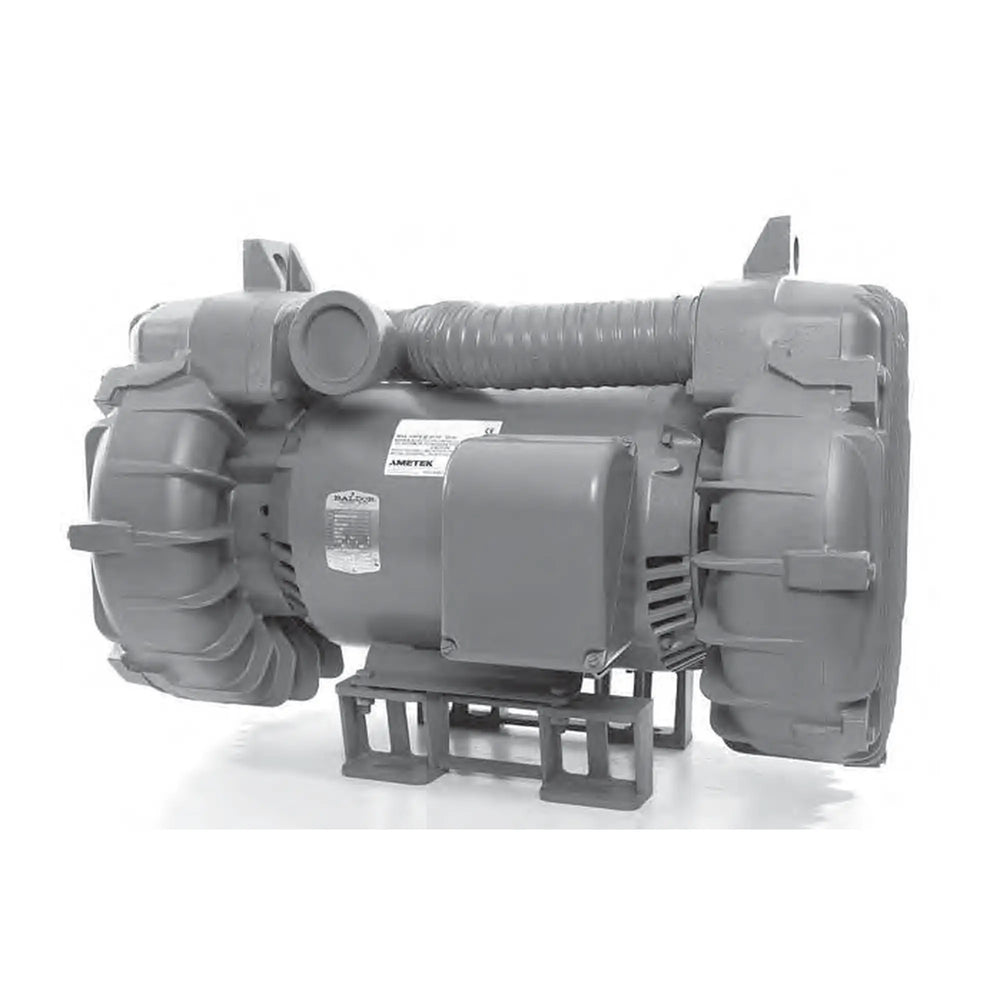

Rotron DRS13BP72A Regenerative Blower - 082244000

Name: Rotron DRS13BP72A Regenerative Blower - 082244000
Brand: Rotron Store
SKU: 82244000
Availability: InStock

Special Order

Country *

First Name

Last Name

Customer or Company Name

Phone Number & Extension *

Fax

Email Address *

Quantity *

Comments *

Item	RS Stock#	Manufacturer	Man. Part#
Rotron DRS13BP72A Regenerative Blower - 082244000	82244000	Rotron Store	82244000

Specifications

Model Family	DRS13
Model Code	DRS13BP72A
Size Class	Large
Voltage	230/460V
Phase	3 PH
Frequency	60 Hz
Pressure	195 IWG
Airflow	620 SCFM
Features	Manufactured in the USA - ISO 9001 and NAFTA compliant CE compliant - Declaration of Conformity on file Maximum flow: 620 SCFM Maximum pressure: 195 IWG Maximum vacuum: 132 IWG Standard catalog motor: 30 HP, ODP Cast aluminum blower housing, impeller & cover; cast iron flanges (threaded) UL & CSA approved motor with permanently sealed ball bearings Inlet & outlet internal muffling Quiet operation within OSHA standards when properly piped or muffled; 1 inlet muffler included (part #511569)
Motor Options	• International voltage & frequency (Hz) • Chemical duty, high efficiency, inverter duty or industry-specific designs • Various horsepowers for application-specific needs
Blower Options	• Corrosion resistant surface treatments & sealing options • Remote drive (motorless) models • Slip-on or face flanges for application-specific needs
Accessories	• Flowmeters reading in SCFM • Filters & moisture separators • Pressure gauges, vacuum gauges, & relief valves • Switches - air flow, pressure, vacuum, or temperature • External mufflers for additional silencing • Air knives (used on blow-off applications) • Variable frequency drive package
Document	Rotron DRS13BP72A Regenerative Blower - 082244000 - Datasheet
